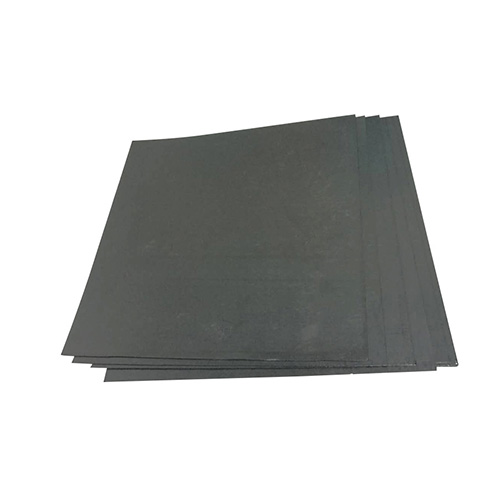

Ultra-Pure Graphite Paper

Ultra-Pure Graphite Paper (UPS-GRADE) is a new generation product from Shanghai Oneshine. Through high-temperature purification methods and strict quality control, the mass-produced ash content is reduced to below 1ppm, helping photovoltaic crystal pulling to reduce costs and increase production efficiency. At the same time, it meets the stringent purity requirements for semiconductor crystal pulling, with the ash content currently achievable at 0.88ppm.

Ultra-Pure Graphite Paper

Ultra-Pure Graphite Paper

       Ultra-Pure Graphite Paper (UPS-GRADE) is a new generation product from Shanghai Oneshine. Through high-temperature purification methods and strict quality control, the mass-produced ash content is reduced to below 1ppm, helping photovoltaic crystal pulling to reduce costs and increase production efficiency. At the same time, it meets the stringent purity requirements for semiconductor crystal pulling, with the ash content currently achievable at 0.88ppm.


UPS-GRADE Test report

Technical Parameters

Unit

Technical Indicators

Test Data

Minimum Carbon Content

%

≥99.9999

99.99991

Density

g/cm³

0.7-1.6

1.0

Thickness

mm

0.2-1.8

0.2

Total Impurity Content (Ash Content)

PPM

≤5

0.88

Tensile Strength

Mpa

≥5.2

5.2

Compression Rate

%

≥40

41

Rebound Rate

%

≥15

15

Applicable PH Value

pH

0-14

0-14

Applicable Temperature in Air

℃

-200～450

-200～450

Applicable Temperature in Vacuum

℃

-200～3000

-200～3000


Micrograph
