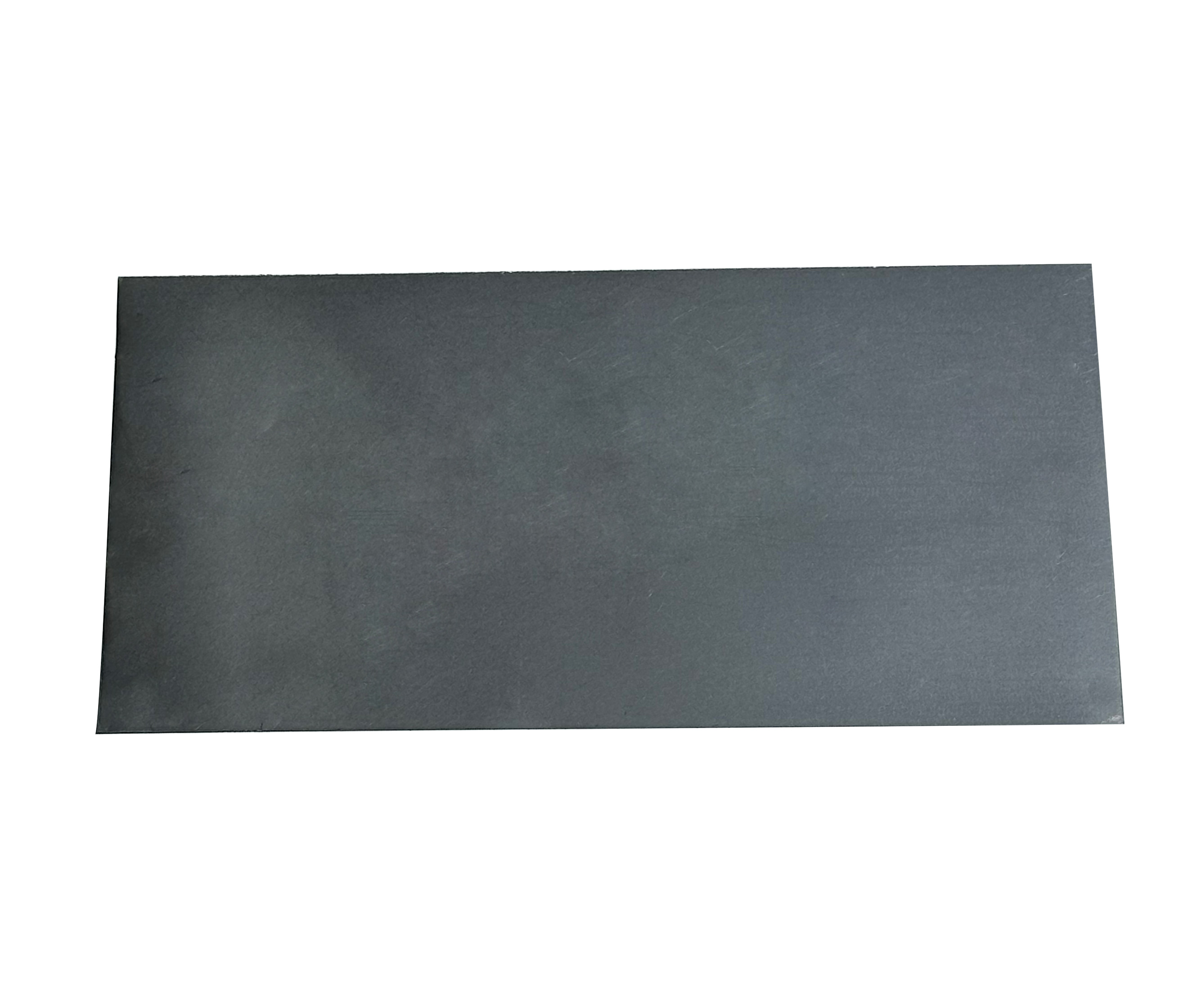

Flow Battery Flexible Graphite Bipolar Plate

Shanghai Oneshine has developed flexible graphite bipolar plates for the flow battery industry, which enhances the mechanical strength of the plate blank and boasts excellent corrosion resistance, along with superior electrical conductivity. The thickness and dimensions can be customized according to specific requirements.

Flow Battery Flexible Graphite Bipolar Plate

Flow Battery Flexible Graphite Bipolar Plate

Shanghai Oneshine has developed flexible graphite bipolar plates for the flow battery industry, which enhances the mechanical strength of the plate blank and boasts excellent corrosion resistance, along with superior electrical conductivity. The thickness and dimensions can be customized according to specific requirements.



Characteristics of The Flow Battery Flexible Graphite Bipolar Plate

· High Purity

· Consistent Surface Density

· Excellent Mechanical Properties

· Excellent Electrical Conductivity

· Excellent Chemical Resistance



MPS-FB Test report

Technical Parameters

Unit

Technical Indicators

Test Data

Minimum Carbon Content

%

≥99.9

99.981

Surface Density

mg/cm²

40±1.3

40.6

Density

g/cm³

1.53

1.532

Thickness

mm

0.2-2.1

0.8

Total Content of Silicon Impurities (Ash Content)

PPM

≤100

57

Tensile Strength

Mpa

≥8

8.2

Bending Strength

Mpa

≥10

10.3

Bulk Resistivity

MΩ*CM

3

2.9

Bulk Conductivity

S/CM

330

333

Applicable PH Value

pH

0-14

0-14

Applicable Temperature in Air

℃

-40～100

-40～100

Applicable Temperature in Vacuum

℃

-40～100

-40～100
